Different Size C Section Roll Forming Machine , Purlin Roll Former With Manual Modify Mold

Brand Name : SHITONG

Model Number : 20-200-1000

Certification : ISO,CE

Place of Origin : Cangzhou, China

MOQ : 1 set

Price : Contact us get the best price

Payment Terms : L/C,T/T

Supply Ability : 20sets/month

Delivery Time : 40-60 days

Packaging Details : Loading container

name : C Section Roll Forming Machine

Machine color : Blue and orange

Drive method : 1" chain

Working speed : 20-25m/min

Maching weight : 9600kg

Cutter type : one cutter for all size

Contact Now

Adjustable different size C purlin roll forming machine with manual modify mold


1. Adjustable different size C purlin roll forming machine with manual modify mold

---- This machine can produce 80mm width to 30mm width C purlin.

---- Use spacer rings to adjust the C purlin size you want to produce.

---- A new desgin cutter, one cutter can cut all size purlin, needn't change mold.

---- Reasonable price:We offer the best price in our industry.

2. Adjustable different size C purlin roll forming machine with manual modify mold parameters

Raw material
material spec sheet, galvanized steel sheet, aluminum sheet
thickness of coil sheet 1-3mm
Machine details
roller material High grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material High grade NO. 45 carbon wrought steel
cutting blade Cr12 mould steel with quenched treatment
diameter of shaft 70 mm
forming steps 12 rows
productivity 15-20 m/min
hydraulic station power 22 KW
hydraulic pressure 10-12MPa
controlling system famous PLC computer control
material of cutting table Cr 12 mould steel with quenched treatment
appearance size 7500mm*1150mm*1510mm
hydraulic oil 40# hydraulic oil
Electric tension 380V 50 Hz 3 Phase or as your requirements

Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set

3. roll forming machine company profiles

Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

4. FAQ(about our roll forming machine)

Q1. What's your payment terms and delivery time?

A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspectthe machine well and before delivery. Of course your payment terms are acceptable.After we get down payment, we will arrange production. About 30-45 days for delivery.

Q2. Do you have after -sales support?

A2: Yes, we are happy to provide advice and we also have skilled technicians available across theworld.

Q3. Do you sell only standard machines?

A3: No, most of our machines are built according to customers specifications, using top brand com-ponents.

Q4. What will you do if the machine is broken?

A4: We provide 18 months free warranty and free technical support for the whole life of anymachine.If the broken parts can't repair, we can send the new parts replace the broken parts freely, but youneed pay the express cost by yourself. If it is beyond the warranty period, we can negotiate tosolve the problem, and we supply the technical support for the whole life of the equipment.

Q5. Can you be responsible for transport?

A5: Yes, please tell me the destination port or address. we have rich experience in transporting.

Q6. How to visit your company?

A6: 1) Fly to Beiing airport, By high speed train From Beiing Nan to Cangzhou Xi (1 hour).

2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

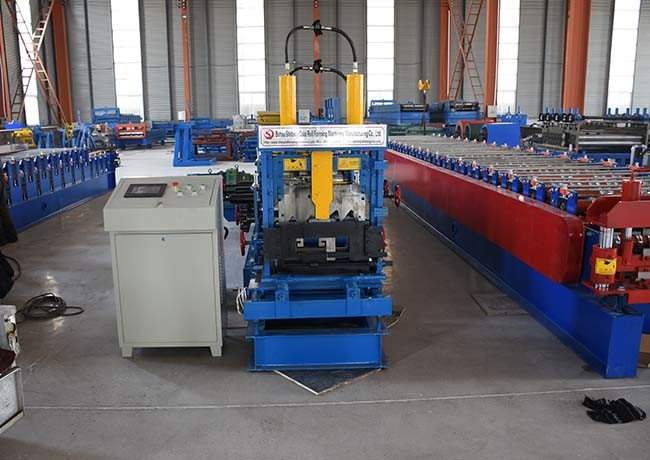

5. Roll forming machine pictures:
Different Size C Section Roll Forming Machine , Purlin Roll Former With Manual Modify MoldDifferent Size C Section Roll Forming Machine , Purlin Roll Former With Manual Modify MoldDifferent Size C Section Roll Forming Machine , Purlin Roll Former With Manual Modify Mold
